    • JA-103KR centrala

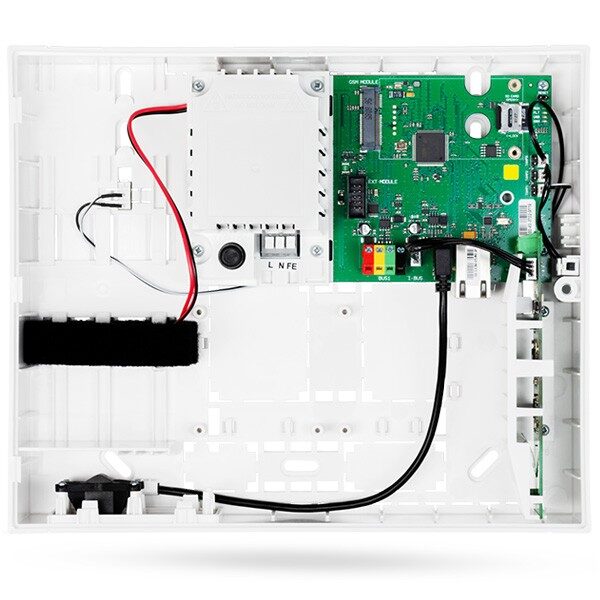

    JA-103KR centrala za protivprovalni, protivpožarni, protivpoplavni sistem + sistem pametne kuće

    Kategorija:
    Proizvodjač:

    Product Description

    JA-103KR centrala za protivprovalni, protivpožarni, protivpoplavni sistem + sistem pametne kuće * Besplatan Cloud, SMS i Push Up obaveštenja * Kontrola preko aplikacije, računara ili tastature * Memorija na serveru i u SD kartici (do7 miliona događaja), Auto-dijagnostika, tačan prikaz stanja baterija i RF signala * LAN konekcija, proširivo na GSM modulom JA-192Y * do 50 bežičnih ili BUS adresa * do 50 korisnika * 8 particija * do 32 PG izlaza *

    The required adjustments and sizing of the system are programmed through the F-Link software (from version 2.0.0).

    The JA-103K control panel offers:

    • 50 wireless or bus devices
    • 50 users
    • 8 sections
    • 32 programmable PG outputs
    • 20 mutually independent calendar events
    • 8 user SMS and voice reports
    • 5 ARCs can be set
    • 5 selectable protocols for an ARC

    The control panel has:

    • 1 terminal board for bus connection
    • 1 connector for a built-in radio module (JA-111R)
    • 1 connector for a GSM/GPRS communicator (JA-192Y)

    The control panel also offers functions such as:

    • Maintenance
    • Day/night mode
    • Short departure response
    • Automatic setting
    • Advanced calendar features

    The following products with the control panel ARE NOT COMPATIBLE:

    • JA-180A (wireless outdoor siren)
    • JA-154J (bi-directional remote control)
    • JA-190X (PSTN communicator module)

    The following products with the control panel ARE COMPATIBLE under certain conditions:

    • The JA-112E (keyboard) is compatible with FW LU61501 and higher
    • The JA-113E (keyboard) is compatible with FW LU61601 and higher
    • The JA-118N (PG Bus Output Module) is compatible with LY68003 and higher
      • FW version LY68002 and lower works only when the PG range is set in the F-Link up to a maximum value of 32
    • The JA-110I (section or PG bus indicator) is compatible only when the PG range is set in the F-Link up to a maximum value of 32



    Technical specifications

    Control panel power supply ~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V,
    Protection class II
    Back-up battery 12 V; 2.6 Ah (lead gel)
    Maximum battery charging time 48 h
    BUS voltage (red – black) 12.0 to 13.8 V
    Maximum continuous current consumption from the control panel 1000 mA
    Max. continuous current consumption for back-up 12 hours Without GSM communicator LAN – OFF: 115 mA
    LAN – ON: 88 mA
    With GSM communicator LAN – OFF: 80 mA
    LAN – ON: 53 mA
    Max. continuous current consumption for back-up 24 hours Without GSM communicator LAN – OFF: 21 mA
    With GSM communicator LAN – OFF: 17 mA
    Maximum number of devices 50
    LAN communicator Ethernet interface, 10/100BASE
    Dimensions 268 x 225 x 83 mm
    Weight with/without AKU 1844 g/970 g
    Reaction to invalid code entry Alarm after 10 wrong code entries
    Event memory Approx. 7 million latest events, including date and time
    Power supply unit Type A according to EN 50131-6
    T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
    GSM communicator (2G) 850 / 900 / 1800 / 1900 MHz
    Classification Security grade 2 according to EN 50131-1
    Operational environment Environmental class II (indoor general) according to EN 50131-1
    Operational temperature range -10 °C to +40 °C
    Average operational humidity 75 % RH, non-condensing
    Complies with EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
    Radio operating frequency (with the JA 11xR module) 868.1 MHz
    Radio emissions ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
    EMC EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
    Safety conformity EN 62368-1+A11
    Caller identification (CLIP) ETSI EN 300 089
    Operational conditions ERC REC 70-03
    Certification body Trezor Test s.r.o. (no. 3025)
